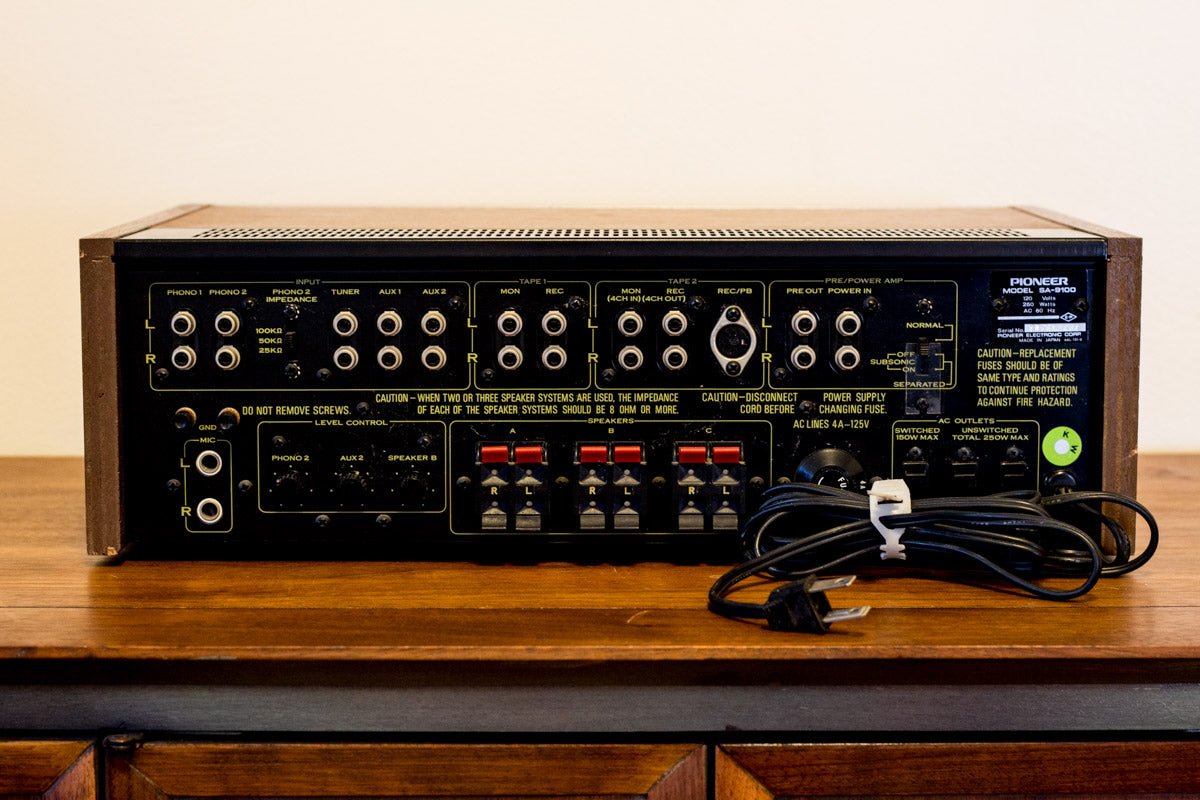

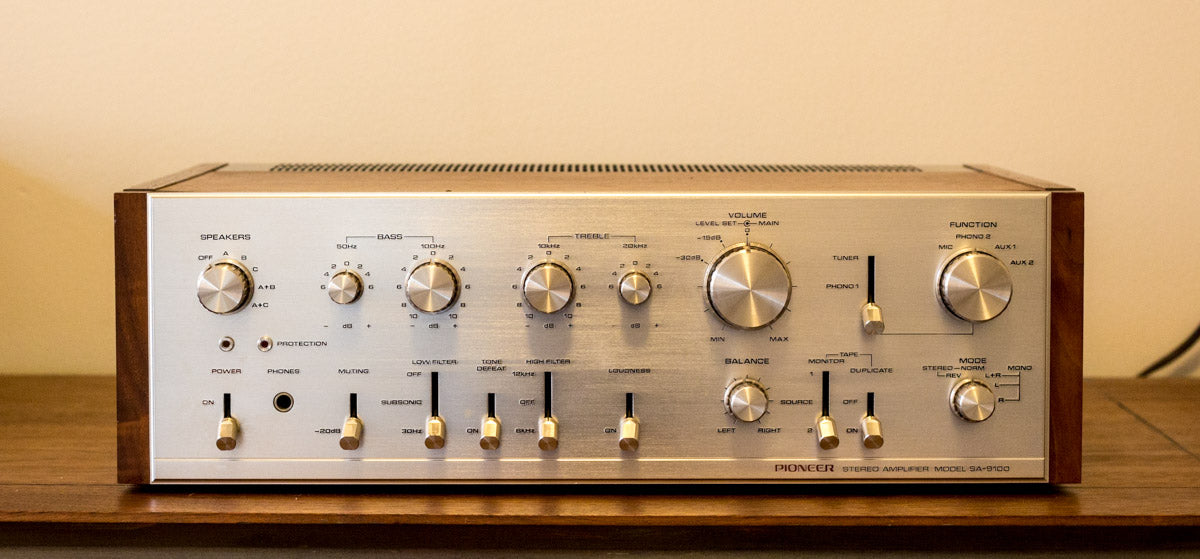

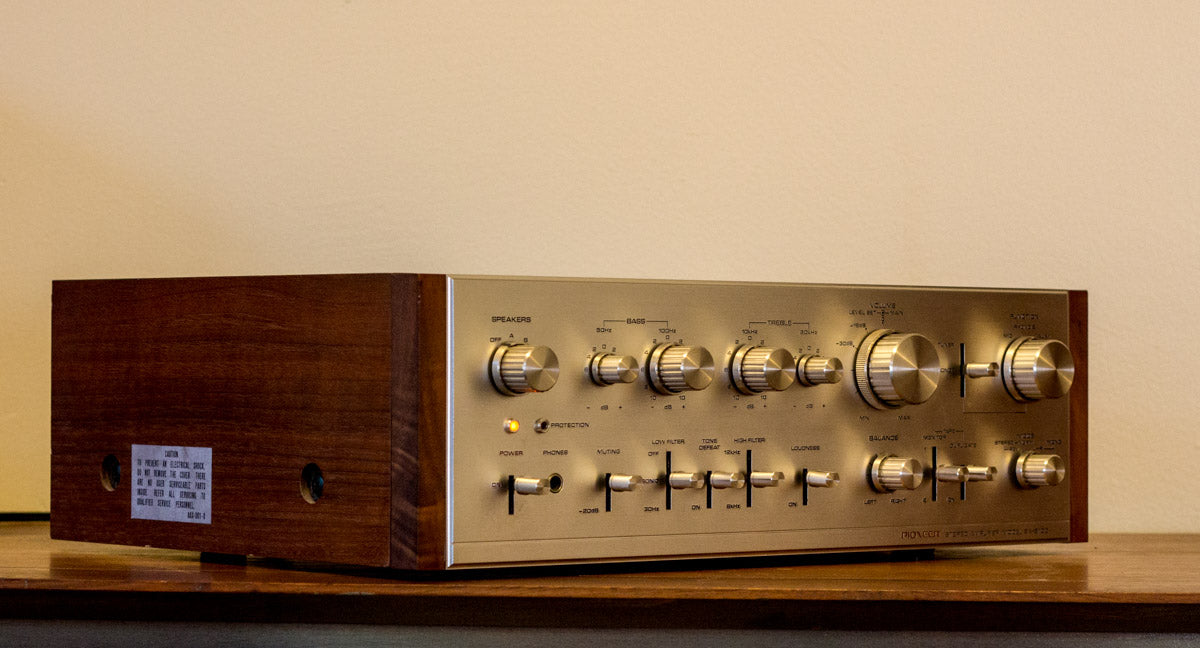

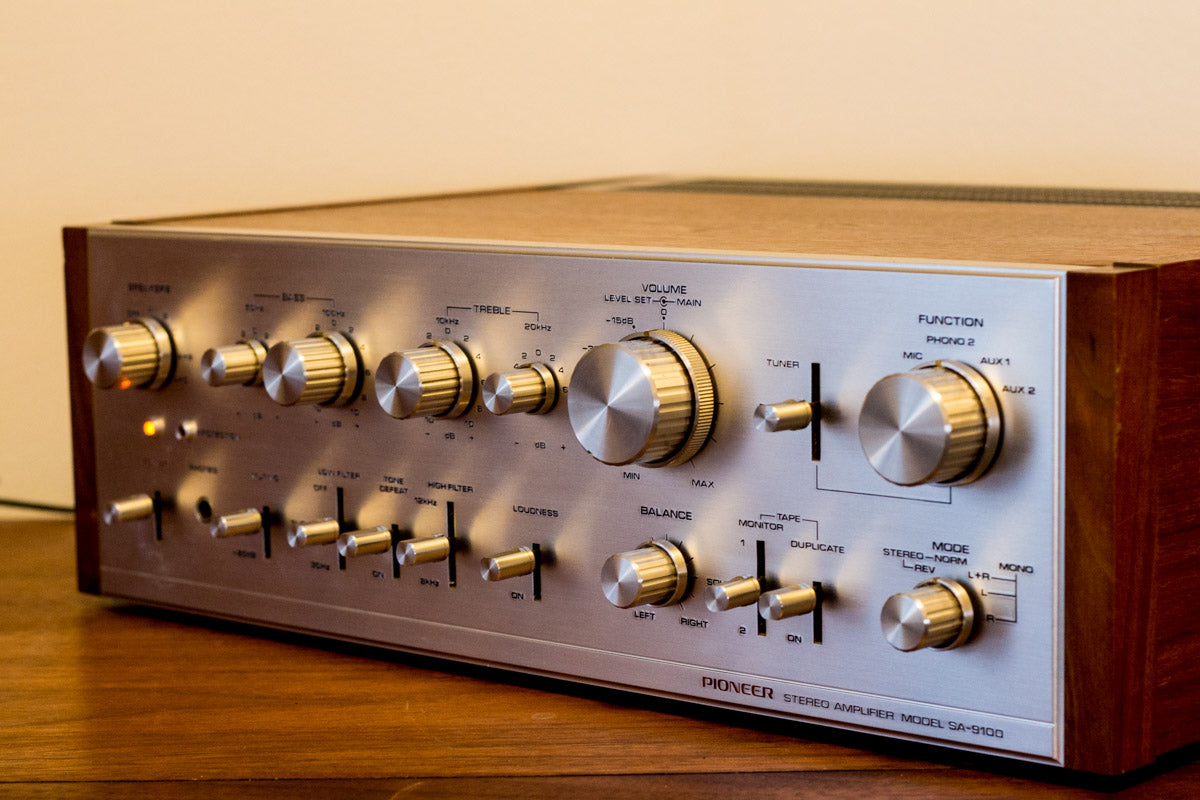

Pioneer SA-9100 Integrated Amplifier
Specifications
Power output: 60 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 70kHz
Total harmonic distortion: 0.1%
Damping factor: 70
Input sensitivity: 2mV (mic), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 70dB (mic), 80dB (MM), 90dB (line)
Output: 150mV (line), 30mV (DIN), 2V (Pre out)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 63 x transistors, 30 x diodes
Dimensions: 430 x 138 x 341mm
Weight: 13.6kg
Accessories: connecting cord, hex wrench, polishing cloth
Year: 1974
